Slip ring Motors

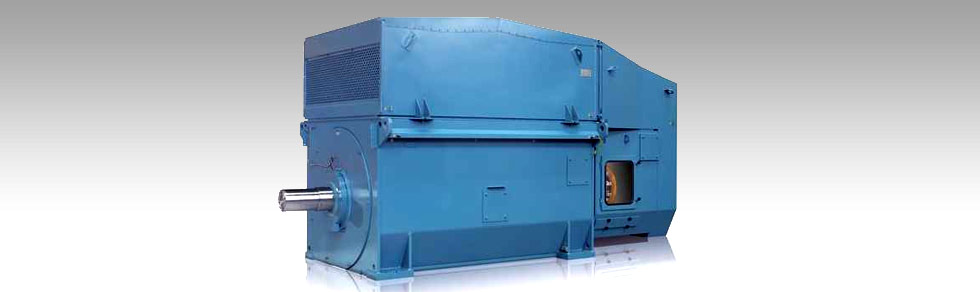

Slip-ring motors are used in applications requiring high starting torque or low starting current. These motors provide maximum

availability, and are especially recommended for heavy load inertia applications like mill drives or situations where network conditions are weak.

Slip-ring modular motors can be supplied with a wide range of accessories. Depending on the application many alternative cooling and enclosure types are available.



     Slip-ring modular motors, technical data

Output power

300 to 18,000 kW at 50 Hz
400 to 15,000 HP at 60 Hz

Frame size


IEC 400 to 1120


Number of poles


4 to 12


Voltages


380 to 13,800 V


Frequency


50 or 60 Hz


Environment


IP55, IP23/IPW24
IC01, IC611, IC81W


Enclosure material


Welded steel


Motor type


AMK, AML


Mounting type


Horizontal or vertical


Standards


IEC, NEMA, GOST, CSA, BS, ANSI, IEEE, VDE, EN


Slip-ring modular motors can be supplied with a wide range of accessories.



Download Catalog
