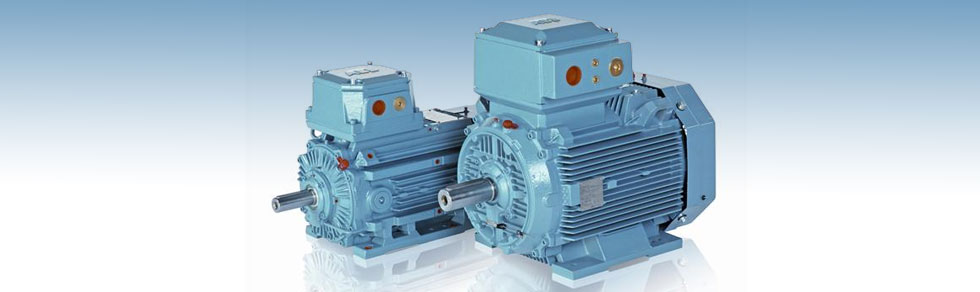

LV Flameproof Motors IE2
Equipment protection level Gb for zones 1 and 2.





ABB offers full range of IECEx/ATEX certified low voltage flameproof IE2 motors, according to IEC 60034-30-1; 2014. Motors are made to meet the precise needs of each customers and each application.


Type of protection Ex d / Ex de

Output power       0.55 to 950 kW
Frame size  IEC 80 to 450
Number of poles    2 to 8
Voltages All commonly used voltages
Frequency 50 or 60 Hz
Protection IP 55 or better
Protection type For zone 1 or 2
Temperature classes T1 - T6
Gas group IIB and IIC
Certficates                                                 IECEx / ATEX certified, Equipment protection levels (EPLs), national certificates for example CU-TR (Russia, Belarus and Kazakhstan), CQST (China) and Inmetro (Brazil)
Features
  • Certified for variable speed drive
  • Variants for different standards in the oil and gas sector
  • Type approval for most marine classification societies
  • Application specific design available
  •
