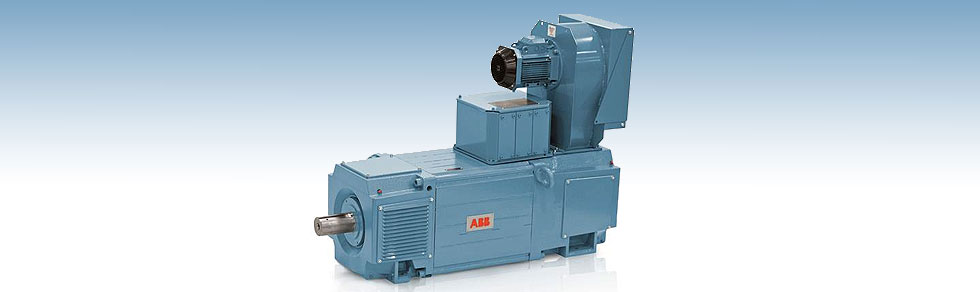

The DMI DC motor provides higher output performance over a wide speed range and is easier to maintain compared to conventional DC motors. Unique features and a robust design increases motor reliability and extends the time between maintenance intervals. The power dense low-profile of the DMI DC motor also makes it easy to integrate into almost any existing application.

Features:

• Extended speed range capabilities with superior commutating performance

• Longer brush wear lengths compared to conventional designed brushes

• Reduced commutator diameters resulting in lower peripheral speeds and extended brush life

• Precise bearing tolerances preventing the risk of grease leakage into the motor

• High quality bearings with long lubrication intervals

• Mechanical brush wear monitoring system – no special monitoring probed brushes required

Specifications:

• IEC frame sizes 180, 200, 225, 250, 280, 315, 400

• Power up to 1400 kW Torque up to 22.000 Nm

• Voltage up to 810 V

• IM – horizontal or vertical, foot or flange

• IP – 22-55

• IC-06, 17, 37, 86W, 666, 410

• Class 200 Insulation

• Meets standards IEC, CE, CSA (up to 710 V)
